Specifications
Access Control And Security
Aesthetics
| Brand Color |
White |
| Color |
WHITE |
After Sales Services
| Warranty on Main Product |
12 Months |
| Additional Warranties |
10 Years Warranty On Compressor |
| Warranty Type |
Onsite |
| Installation & Demo |
will coordinate with the brand for Installation and Demo |
| Installation & Demo applicable |
Yes |
Air Conditioner Category
| Air Conditioner Type |
Split |
| Air Conditioner Capacity |
1.5 Ton |
| Coverage Area |
180 Sq.Ft. |
| Approximate Coverage Area(Sq.M) |
16.72 Sq.M. |
Air Conditioner Features
| Air Conditioner Modes |
Econo Mode |
| Convertible Mode |
No |
| Air Flow Volume |
IDU: 572 (In) CFM |
| Inverter Technology |
Yes |
| Stabilizer Free Operation |
Yes |
| Cooling Capacity |
Rated Capacity at 50% Load - 2500 Watts |
| Ambient Temperature (Cooling/Heating) In Degree Celsius |
Cooling - 50 |
| Rated Current |
Cooling: 7.71 |
| Air Conditioner Features |
Self Diagnosis |
Air Conditioner Functions
| Compressor Type |
Swing Compressor |
| Refrigerant Type |
R-32 |
| Noise Level (Indoor Unit) |
45/42/40/38/35 dB |
| Noise Level (Outdoor Unit) |
54 dB |
| Air Flow Type |
Coanda Air Flow |
Air Conditioner Physical Attributes
| Condenser Coil Type |
Copper |
| Louvers Swing Type |
Up/Down |
Air Conditioner Plug Details
| Annual Power Consumption |
1045 KWh |
| Power Consumption |
1752 Watts |
| Voltage Rating |
230V, 50Hz |
| Frequency |
50 Hz |
Air Conditioner Screen Specifications
Company Contact Information
| Customer Support Number |
18601803900 | 1140319300 |
| Customer Support Email |
customerservice@daikinindia.com |
| Manufacturer/Importer/Marketer Name & Address |
Manufacturer Name & Address: Daikin Airconditioning India Pvt. Ltd. 12th Floor Ambience Tower Ambience Island NH-8 Gurgaon -122002 Haryana |
| Country of Origin |
India |
| Country of Brand Origin |
Japan |
Service Promise
| Customer Support Email |
customersupport@.com |
| Registered Name and Address |
Infiniti Retail Ltd. - Unit No. 701 & 702, 7th Floor, Kaledonia, Sahar Road, Andheri (East); Mumbai - 400069. India |
| Customer Support Number |
1800 572 7662 |
| Customer Care Contact Person |
Grievance Officer |
Energy Standards
| Energy Efficiency (Star Rating) |
3 Star |
In The Box
| Documents |
Warranty-Card |
| Main product |
1 x Indoor Unit & Outdoor Unit |
| Accessories |
Remote |
| Package Includes |

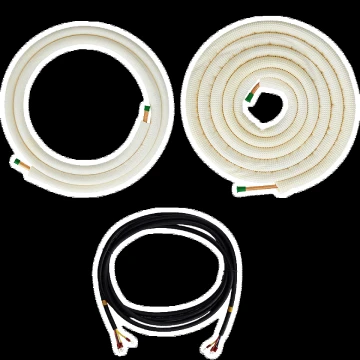

1 x Indoor Unit | 1 x Outdoor Unit | 1 x Inter Connecting Pipe | 1 x Remote | 3 x Manuals | 1 x Warranty Card |
| Generic Name |
Air Conditioner |
Manufacturer Details
| Brand |
Daikin |
| Model Series |
ATKL50TV |
| Model Number |
ATKL50TV |
Product Dimensions Open
| Dimensions In CM (WxDxH) |
89.00 x 23.01 x 30.00 |
| Main Unit Weight |
11.01 Kg |
| Product Weight |
42.01 Kg |
| Dimensions In Inches (WxDxH) |
35.04 x 9.06 x 11.81 |
Product Dimensions Outdoor Unit
| Dimensions in CM (W x D x H) |
85 x 30 x 60 |
| Dimensions in Inches (W x D x H) |
33.46 x 11.81 x 23.62 |
| Outdoor Unit Weight |
31 |
Product Packaged Dimensions Outdoor Unit
| Outdoor Unit Package Dimensions in CM (W x D x H) |
104 x 41 x 68 |
| Dimensions in Inches (W x D x H) |
40.94 x 16.14 x 26.77 |
| Outdoor Unit Package Weight |
42.01 Kg |

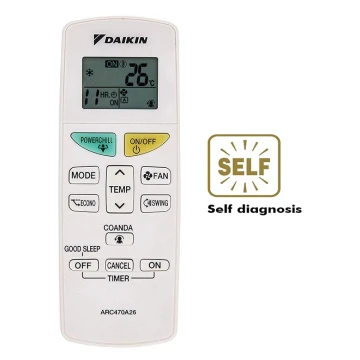

Remote Control Details
| Remote Control Details |
IR |
